A7 Bag-in-Box bag making machine

Is high-speed bags making machine including the advantage of low noise,less consume,Four unwinding system,Automaticwelding and it widely used for food ,electrical ,chemical,Daily chemical products,etc.soft-packing industrial.

A Series

Bag making machine

PURCHASING

Available pouches:

NO.	Available pouches type	Packing size	Width	Length	Speed range	Max. speed	Note
1	Three size sealing bags	/	80-600mm	100-300mm (Max. for 1800mm)	20-40pcs/min	40pcs/min	/

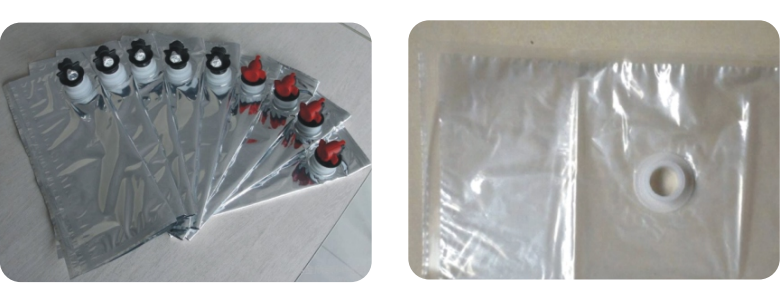

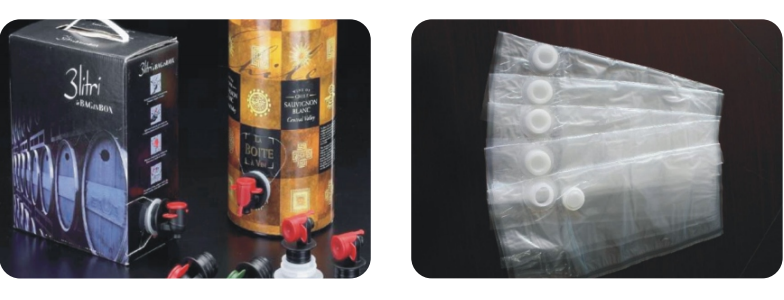

2	BIB Bag-in-Box bags	3-25 liters	200-580mm	100-300mm(Max. for 1800mm)	15-30pcs/min	30pcs/min	Appointed valve size

Specification Sheet:

Model	HL0600A7
Structure design	Four Unwinders, valve conveying, valve inserting,vertical station,horizontal station,punching tools, sensor, conveying table, electricity controlling box
Controlling system	PLC	Japan Panasonic
Equipment Drive	Three sets of YASKAWA Servo Motors control Three traction, main motor is YASKAWA Frequency conversation motor
Name	Three side sealing bag, BIB Bag-in-Box bag making machine
Application pouches	three side sealing bag, BIB Bag-in-Box with valve bag
Feeding Function	Automatic feeding by Air Cylinder.
Big advantages	1. Japan imported Panasonic servo motors drive the traction（When speed up, no influence on the temperature, equipped with Japan reducer also); 2. Automatically pneumatic driven feeding device with photoelectric rectification tracking, upgrade the accuracy
Material	BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on

Standard specification
Feeding line speed	36m
Max. Unwinding film Size	Max. Width: 1250mm	Max. Diameter: ¢600mm
Unwinding parts	4 sets x unwinding parts	Max. for four layers (separately 2 pcs for upper & down layers) packing pouches production
Feeding time	air-operated up&down feeding function
Speed of bag-making	15-40section/min
Thick of material	60-200micron
Bag Making Roll	4 rolls

Total power consumption （KW）	41(kw) 380V, 3phase, 50HZ
RCCB	60A (R.S.T.E)
Cooling water Capacity	About 15L/min
Overall dimension （MM）	About 15m ×2.5×1.9m
Gross weight（KG）	6100(kg)
Appearance	Machine body: sky blue + machine cover: ivory white, stainless steel collecting table

Technical Parameter
Model	HL0600A7	Power	42kw
Application of bags	3-side sealing bags	BIB box
Speed	150pcs/min	15-30pcs/min
voltage of horizontal sealing	2kw×6=12kw	voltage of vertical sealing	2kwX8=16kw
Overall Dimension	11000×1850×1950mm

Note : Above configuration is for your reference, launch the production according to the actual configuration ordered.

The Merits Of Tianzheng Equipment Goes With Big Advantages For

Tech support: We have experienced senior electrical engineer, professional business representatives and excellenttechnical personnel, Good service and production technology research and development, To be more important, we setup strict quality management system to keep the machine goes with well performance and high quality before delivery.
