HL1200KT-H 1200mm Width Roll to Roll Full Servo Double Colors Stamping and punching window Machine

Model

HL1200KT-H

Equipment Drive

Totally for 7 servo motors, Mitsubishi Main motor servo, 2 sets of Panasonic Servo Motors, servo driven unwinding & rewinding , stamping foil traction servo

Name

HL1200KT-H Full servo 1200mm Width Roll to Roll Double Colors Stamping & punching window Machine

Application functions

Unwinding NON-woven/film- stamping- punching window - rewinding the web

Feeding Function

Automatic feeding by Air Cylinder.

Big advantages

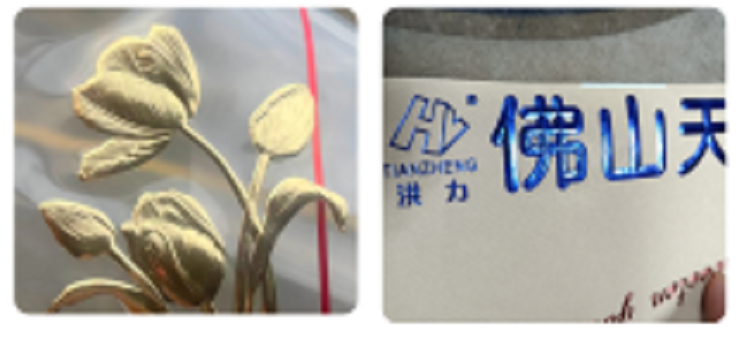

Different stamp(like logo, characters) could be thermoprinted on according to your design

Material

Non-woven fabric, BOPP/PET/Matted PET , Paper，coated paper，whiteboard paper and so on.

Standard specification

Feeding line speed

Within 50m

Unwinding function

Pneumatically driven up&down feeding design

Max. Material Size

Max. Width: 1200mm

Max. Diameter: ¢1000mm

Bag Making Roll

single roll

Fixed length accuracy

Within 0.5mm

Available material for punching

BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ;

PET/PAPER/AL/PE etc. single layer and laminated material

Available Film thickness

≥100 micron

Suitable for food/chemical industry/electronic product package

Punching window Function

Punching window device equipped with punching die cutter mold x 2sets

(Can be movable separately for 2 sets)

Speed of punching window

30-140 time/min

Size of punching window

Max. For 200*200mm X 2pcs

Fixed length accuracy

Within 0.5mm

Slagging wasted device

Air blower blowing for slagging, Two line production, Equipped with Two sets, then collecting to the wasted funnel stand

Transferring belt

1 set, collecting the wasted driven by micro motor

Speed of Stamping

30 - 200pcs/min（The speed would be further influenced by the stamp size）

Size of Stamping mold

Max. For 200 * 200mm X 2stations

Available stamping material

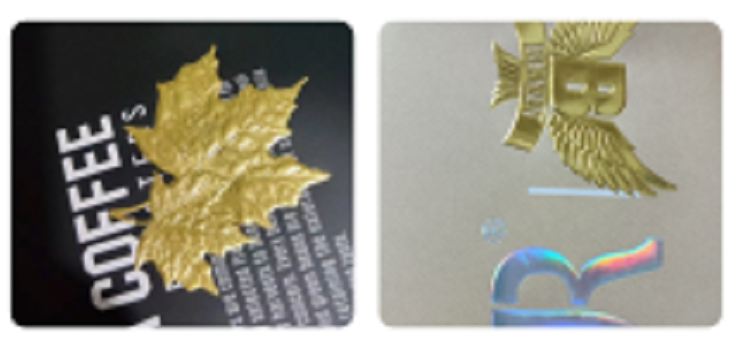

Aluminum foil, including laser type and color type foils (more than 100 colors and pattern for option)

Available material for stamping onside

Craft paper, Non-woven fabric, BOPP/PET/Matted PET, PVC/PET Heat Sealing Shrink film, Paper, coated paper, whiteboard paper and other rolls

Available Film thickness

20 ~ 400 micron

Suitable for food/chemical industry/electronic product package

Available craft paper thickness

50-200gr

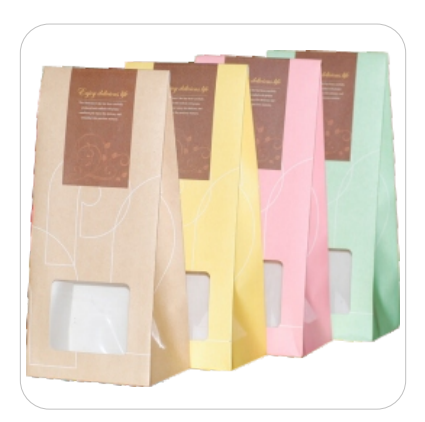

Suitable for food/present packing and shopping bags

Rewinding function

 Driven by Rewinding servo motor

Rewinding speed

Within 50m
