A9-DH Double lanes flat bottom with zipper bag making machine
Square bottom bag is a brand new packing type, which make bag present stereo, make packaging visual more complanation,intuitive, maximize the packaging capacity, more stable storage. This machine is a new generation of packaging equipmentequipped with many automation modules, which can produce the square bottom packing bag at high efficient
A Series
Bag making machine
Nozzle press machine
Square bottom bag is a brand new packing type, which make bag present stereo, make packaging visual more complanation,intuitive, maximize the packaging capacity, more stable storage. This machine is a new generation of packaging equipmentequipped with many automation modules, which can produce the square bottom packing bag at high efficient
Available Pouches:
|
NO. |
Available pouches type |
Gusset |
Bottom |
Main Width |
Length |
Speed range |
Efficiency |
|
1 |
Three size sealing bags with/without zipper |
/ |
/ |
100-370mm |
160-680mm |
30-90pcs/min |
One line |
|
2 |
Three size sealing bags with/without zipper |
/ |
/ |
100-370mm |
160-340mm |
30-90pcs/min |
Two lines |
|
3 |
4 side sealing bags with/without zipper |
Width:55-150mm Depth: 27.5-75mm |
/ |
100-370mm |
160-600mm |
30-70pcs/min |
One line |
|
4 |
4 side sealing bags with/without zipper |
Width:55-150mm Depth: 27.5-75mm |
/ |
100-370mm |
160-300mm |
30-70pcs/min |
Two lines |
|
5 |

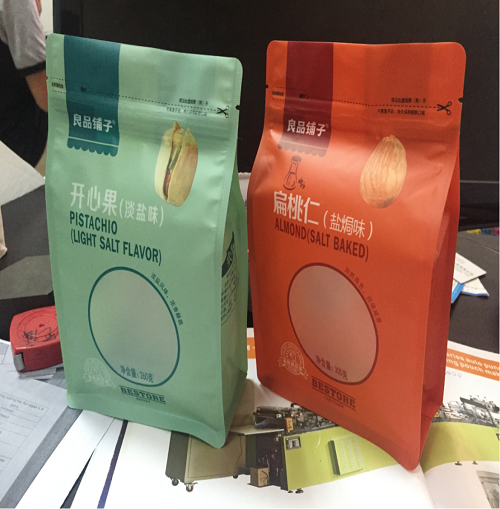

Flat bottom bags with/without zipper |
Width:55-150mm Depth: 27.5-75mm |
Width:55-150mm, Depth:27.5-75mm |
100-370mm |
160-600mm |
30-70pcs/min |
One line |
|
6 |
Flat bottom bags with/without zipper |
Width:55-150mm Depth: 27.5-75mm |
Width:55-150mm Depth:27.5-45mm |
100-370mm |
160-300mm |
30-70pcs/min |
Two lines |
Details Specification:
|
Machine model |
HL0700A9-DH |
|
Machine name |
High speed double lines flat bottom with zipper bag making machine (High grade: Non-stop storing unwinding film function & Front/down film pattern correspondence function) |
|
Pouch making type: |
Three side sealing with/without zipper bag |
|
Four side sealing with/without zipper bag |
|
|
Flat bottom with/without zipper bag |
|
|
Roll size: |
Three side seal with/without zipper: Roll width :350mm-1400mm, diameter max: 800mm(¢76mm paper core) Flat bottom seal with/without zipper: Roll width :500mm-1300mm, diameter max: 800mm(¢76mm paper core) Four side sealing with/without zipper Roll width :70mm-280mm, diameter max: 700mm(¢76mm paper core) |
|
Material |
BOPP/CPP;BOPP/CPE;BOPP/PET/PE;BOPP/PET/CPP;PET/PE;PET/CPP;PET/AL/PE;PET/AL/NY/PE;NY/PE;PET/PAPER/AL/PE of composite material and so on |
|
Feeding line speed |
36m |
|
Feeding Function |
Automatic feeding by Air Cylinder. |
|
Feeding time |
Air-operated up&down feeding function |
|
Thick of material |
60-200Micron, more than 200Micron would be further influenced the speed |
|
Whole Machine Dimension |
|
|
Total power consumption（KW） |
131.4(kw) 380V, 3phase, 50HZ |
|
Overall dimension （MM） |
24500MM*3200MM*2300MM |
|
Gross weight（KG） |
10,800(kg) |
|
Advantages: Double lanes High efficient production; Dual synchronized controlling system; Total 32 Circuits, 13 sets servo motors & 1 set of robot arm driven machine |
|||||||
|
Model |
HL0700A9-DH |
Dimension(L*W*H) |
23000mm * 3000mm * 2300mm |
G.W. |
10800kg |
||
|
Three-phase Voltage |
380V +10%, 50Hz |
Total Power |
131.4kw |
Raw Material |
Various laminated films |
||
|
Vertical Sealing A |
3groups x 780mm |
Vertical Cooling A |
3groups x 450mm |
||||
Note : Above configuration is for your reference, launch the production according to the actual configuration ordered.
