A6 Series-three sides ,stand-up,zipper&foldablebottom stand-up pouch making machine

Is high-speed bags making machine including the advantage of low noise,less consume,double side-gusset ,doublezipper and it widely used for food ,electrical ,chemical,Daily chemical products,etc.soft-packing industrial.

Bag making machine

A Series

PURCHASING

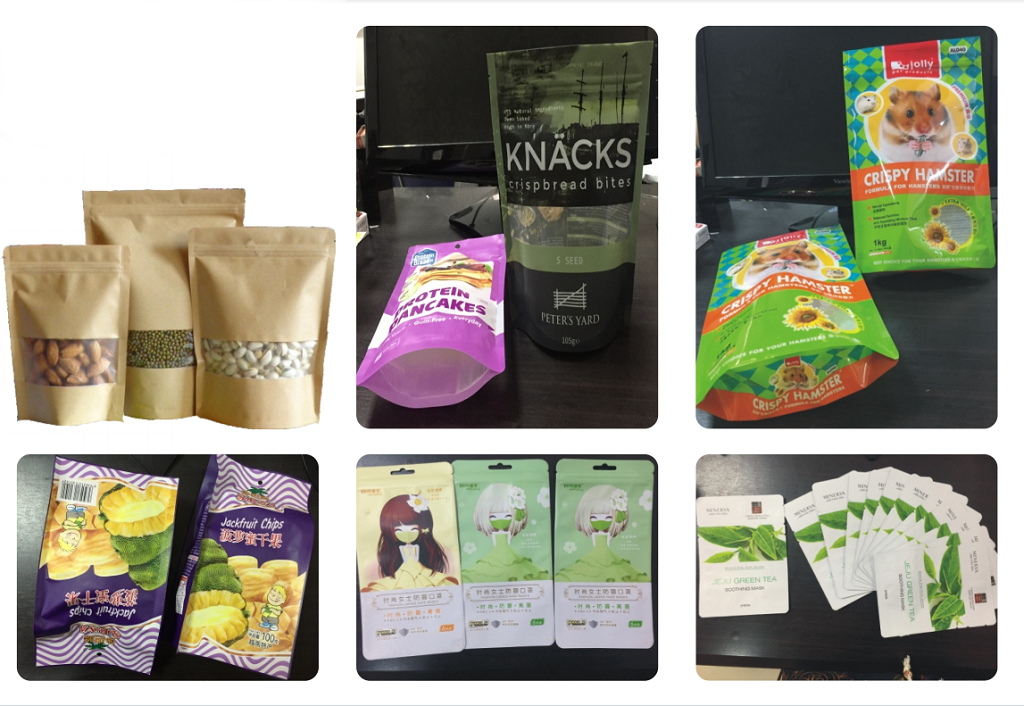

Specification for applied bags

Applied bag types	Length	Width	Speed	Max. Efficient
Three-side sealing bag	150-400mm (multi-fold transfer to 2400mm)	50-600mm	30-140 pcs/min	6 LINES
Stand-up bag	150-600mm	50-380mm	30-120 pcs/min	2 LINES
Three-side sealing bag with zipper	150-400mm (multi-fold transfer to 2400mm)	50-600mm	30-140 pcs/min	2 LINES
Stand-up bag with zipper	150-600mm	50-380mm	30-120 pcs/min	2 LINES
Stand-up bag with bottom gusset	150-600mm	50-380mm	30-120 pcs/min	1 LINE
Stand-up bottom gusset bag with zipper	150-600mm	50-380mm	30-120 pcs/min	1 LINE
Four-side sealing penguin bag	150-400mm (multi-fold transfer to 2400mm)	80-450mm	30-80 pcs/min	1 LINE
K SEAL 4 side sealing bag	150-400mm (multi-fold transfer to 2400mm)	80-450mm	30-80 pcs/min	1 LINE

Specification Sheet:

Model	HL0600A6
Equipment Drive	Four sets of Mitsubishi Servo Motor，main motor for frequency conversion motor
Name	Three side sealing, stand-up with zipper & bottom gusset pouch bags making machine
Application pouches	Three side sealing bag, stand-up bag, three side with zipper pouch, stand-up with zipper bag, penguin bag, bottom gusset stand-up bag, four side sealing bag
Feeding Function	Automatic feeding by Air Cylinder.
Big advantages	Main driven for China frequency conversion motor with Japan YASKAWA frequency converter.
Material	BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on
Standard specification
Feeding line speed		36m
Max. Material Size		Max. Width: 1250mm	Max. Diameter: ¢800mm
Feeding time		air-operated up&down feeding function
Speed of bag-making		30-140section/min
Thick of material		60-200Micron
Bag Making Roll		1 to 3 rolls

Total power consumption （KW）	55(kw) 380V, 3phase, 50HZ
Overall dimension （MM）	15000×2300×1860(mm)
Gross weight（KG）	6700(kg)

The Merits Of Tianzheng Equipment Goes With Big Advantages For

Tech support: We have experienced senior electrical engineer, professional business representatives and excellenttechnical personnel, Good service and production technology research and development, To be more important, we setup strict quality management system to keep the machine goes with well performance and high quality before delivery.
