A1 Series-center sealing gusset/fourside sealing pouch making machine

This bag making machine which apply to laminated film bags making by inner heating sealing with friendly PLC control systems . And the folding pattern is in horizontal unwinding for adjusting the vertical lifting triangular device, folded by A-shape framework and film supplied basis.

A Series

Die-cutting machine

Bag making machine

PURCHASING

General Introduction:

Specification for applied bags:

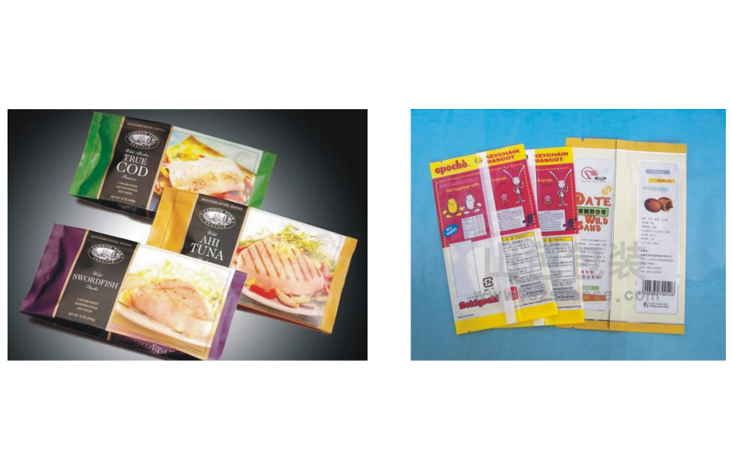

Applied bag types	Length	Width	Speed	Gusset Width	Note
Central sealing bag	30-2400mm	50-400mm	30-150 pcs/min		Easy handle

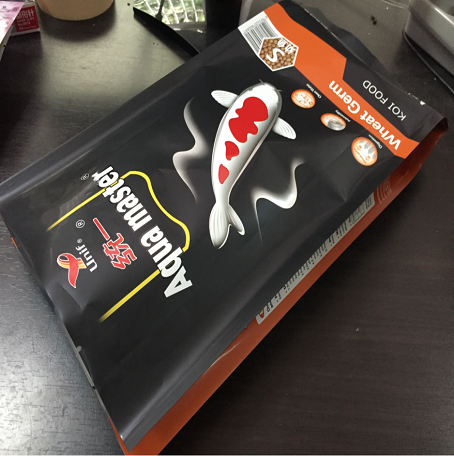

Side sealing side gusset bag	30-2400mm	50-300mm	30-120 pcs/min	30-130mm	Easy handle
Central sealing side gusset bag	30-2400mm	50-300mm	30-120 pcs/min	30-130mm	Easy handle
Four side sealing bag	30-2400mm	50-300mm	30-90 pcs/min	30-130mm	Easy handle
Two side sealing bags	30-2400mm	80-400mm	30-50 pcs/min		Strict craft is needed

Model	HL0400A1
Equipment Drive	Two sets of Mitsubishi Servo Motors control Two traction, China brand frequency conversion motor for main motor, equipped with Japan YASKAWA frequency converter
Name	central sealing with side gussets bag, side sealing side gusset bags, four side sealing bag making machine
Application pouches	central sealing pouch, central sealing with side gusset bag, side sealing with side gusset organ bags, four side sealing bag, two side sealing bag.
Feeding Function	Automatic feeding by Air Cylinder.
Big advantages	Automatically pneumatic driven feeding device with photoelectric rectification tracking, upgrade the accuracy
Material	BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on
Standard specification
Feeding line speed		36m
Max. Material Size		Max. Width: 840mm	Max. Diameter: ¢800mm
Feeding time		air-operated up&down feeding function
Speed of bag-making		30-140section/min
Thick of material		6-20C
Bag Making Roll		1 roll
Range of material		Laminated material	Suitable for food/chemical industry/electronic product package

Total power consumption （KW）	30(kw) 380V, 3phase, 50HZ
Cooling water Capacity	About 15L/min
Overall dimension （MM）	About 9.5m ×1.8×1.86m
Gross weight（KG）	4500(kg)

Technical Parameter
Model	HL0500A1	Power	30kw/380v
Voltage of vertical sealing	2kw×1+2kw×4=10kw	Gross Weight	5500kg
Application of bag	Mid-sealing Bags	Organ Bags	4-side sealing bags
Speed	160pcs/min	140pcs/min	90pcs/min
Overall Dimension	8500×1800×1860mm

Note : Above configuration is for your reference, launch the production according to the actual configuration ordered.

The Merits Of Tianzheng Equipment Goes With Big Advantages For

Tech support: We have experienced senior electrical engineer, professional business representatives and excellenttechnical personnel, Good service and production technology research and development, To be more important, we setup strict quality management system to keep the machine goes with well performance and high quality before delivery.
