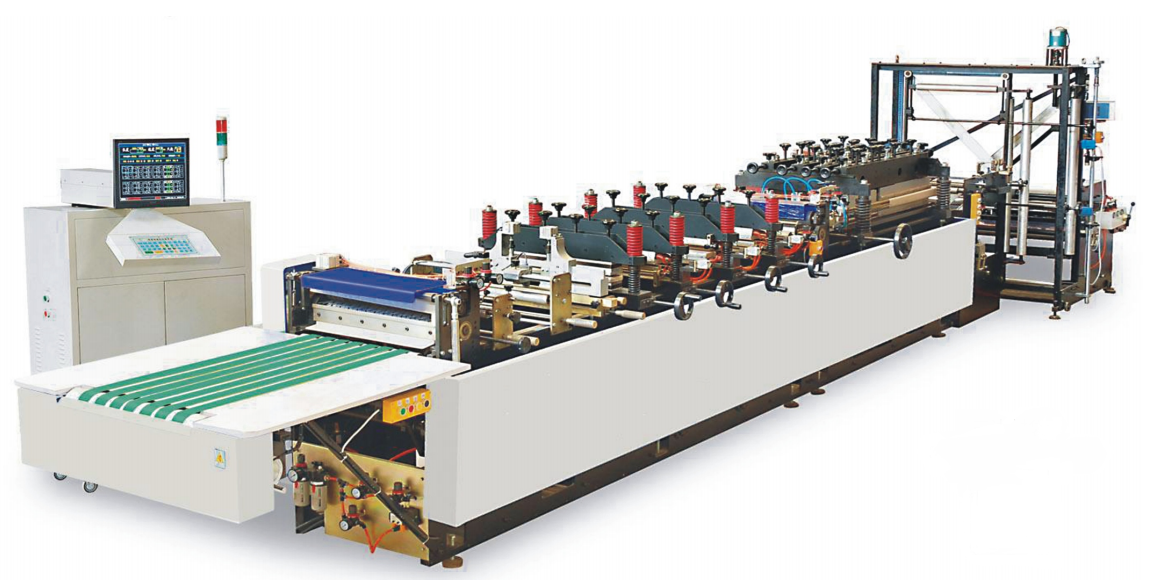

A2 Series-three sides seal pouch/stand-up pouch making machine

Is high-speed bags making machine including the advantage of low noise,less consume,double side-gusset and itwidely used for food ,electrical ,chemical,Daily chemical products,etc.soft-packing industrial.

A Series

Bag making machine

Die-cutting machine

Nozzle press machine

PURCHASING

SpeSpecification for applied bags:

NO.	Available pouches type	Gusset width Opening	Width	Length	Speed range	Max. Efficient
1	Three size sealing bags		80-600mm	100-400mm (Max. for 2400mm)	30-150pcs/min	6 lanes
2	Stand-up bags with arc-sealed shape bottom	30-180mm	50-580mm	150-400mm	30-130pcs/min	2 lanes
3	Stand-up bags with simple bottom	30-180mm	50-580mm	150-400mm (Max. for 2400mm)	30-130pcs/min	2 lanes
4	4 side sealing bags with both side gusset	30-180mm	80-500mm	100-400mm(Max. for 2400mm)	20-80pcs/min	1 lane
5	Bottom seal with bottom gusset (K seal) bags	30-180mm	80-500mm	100-400mm(Max. for 2400mm)	20-80pcs/min	1 lane

Specification Sheet:

Model	HL0600A2
Equipment Drive	Two sets of Mitsubishi Servo Motors，3pcs traction driven by two servo motors and direct motor
Name	Three side sealing, stand-up pouch, four side sealing bags making machine
Application pouches	Three side sealing bag, stand-up bag, three side sealing pouch, stand-up bag, penguin bag, four side sealing bag
Feeding Function	Automatic feeding by Air Cylinder.
Big advantages	Main driven for China frequency conversion motor with Japan YASKAWA frequency converter.
Material	BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on

Standard specification
Feeding line speed	36m
Max. Material Size	Max. Width: 1250mm	Max. Diameter: ¢800mm
Feeding time	air-operated up&down feeding function
Speed of bag-making	30-140section/min
Thick of material	30-200 Micron
Bag Making Roll	1 to 3 rolls

Total power consumption （KW）	57(kw) 380V, 3phase, 50HZ
Overall dimension （MM）	12000×2300×1860(mm)
Gross weight（KG）	5300(kg)

Technical Parameter
Model	HL0600A2	Power	40kw/380v
Application of bags	3-side sealing bags	Stand-up bags	4-side sealing bags
Speed	150pcs/min	120pcs/min	90pcs/min
Voltage of Main Motor	3kw	Voltage of traction motor	1.5kw×2=3kw
Gross weight	5500kg	Overall Dimension	10000×2000×1900mm

Note : Above configuration is for your reference, launch the production according to the actual configuration ordered.

The Merits Of Tianzheng Equipment Goes With Big Advantages For

Tech support: We have experienced senior electrical engineer, professional business representatives and excellenttechnical personnel, Good service and production technology research and development, To be more important, we setup strict quality management system to keep the machine goes with well performance and high quality before delivery.
