A4 Series-three side seal,centralseal pouch making machine

Is high-speed bags making machine with two function design:3side sealing & Mid-side gusset sealing ,its including theadvantage of low noise,less consume,double side-gusset ,double zipper and it widely used for food ,electrical ,chemical,Daily chemical products,etc.soft-packing industrial.

A Series

Bag making machine

Die-cutting machine

PURCHASING

NO.	Available pouches type	Gusset width	Width	Length	Speed range	Max. speed

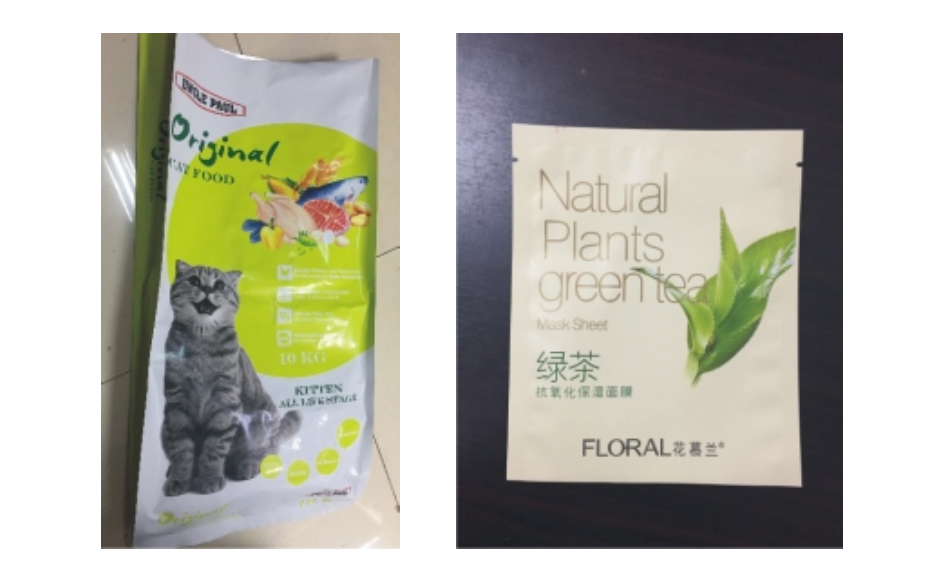

1	Three size sealing bags		80-400mm	100-400mm (Max. for 2400mm)	30-120pcs/min	120pcs/min
2	Central bags		100-400mm	100-400mm(Max. for 2400mm)	30-100pcs/min	100pcs/min

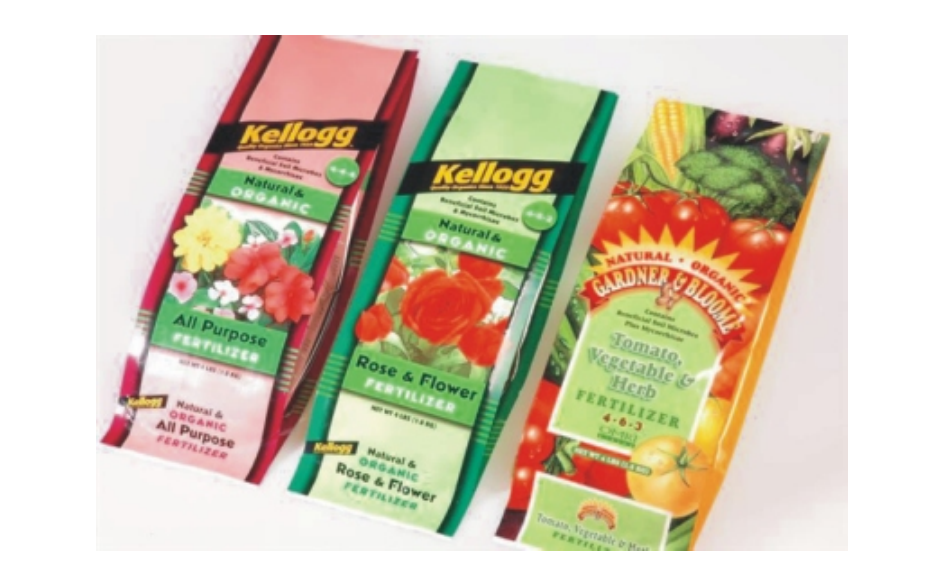

3	Center-seal with side gusset Organ bags	30-130mm	100-300mm	100-400mm(Max. for 2400mm)	30-100pcs/min	100pcs/min
4	4 side sealing bags with both side gusset	30-100mm	100-300mm	100-400mm(Max. for 2400mm)	30-40pcs/min	40pcs/min
5	Bottom seal with bottom gusset (K seal) bags	30-100mm	100-300mm	100-400mm(Max. for 2400mm)	30-40pcs/min	40pcs/min
6	Two side sealing bags		80-400mm	100-400mm(Max. for 2400mm)	30-90pcs/min	90pcs/min

Specification Sheet:

Model	HL0400A4
Equipment Drive	Two sets of Panasonic Servo Motors control Two traction, Another traction is Variable frequency traction equipped with tension device
Name	Three side sealing, central sealing with side gussets bag, 4 side sealing bags making machine
Application pouches	three side sealing bag, central sealing pouch, central sealing with side gusset bag, four side sealing bags, two side sealing bags
Feeding Function	Automatic feeding by Air Cylinder.
Big advantages	1. Japan imported Panasonic servo motors drive the traction（When speed up, no influence on the temperature, equipped with Japan reducer also); 2. Automatically pneumatic driven feeding device with photoelectric rectification tracking, upgrade the accuracy
Material	BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on

Standard specification
Feeding line speed	36m
Max. Material Size	Max. Width: 840mm	Max. Diameter: ¢1200mm
Feeding time	air-operated up&down feeding function
Speed of bag-making	30-140section/min
Thick of material	6-20C
Bag Making Roll	1 roll
Range of material	Laminated material	Suitable for food/chemical industry/electronic product package

Total power consumption （KW）	31(kw) 380V, 3phase, 50HZ
Cooling water Capacity	About 15L/min
Overall dimension （MM）	About 9.5m ×1.45×1.86m
Gross weight（KG）	4500(kg)

Technical Parameter
Model	HLO400A5	Power	42kw/380v
Application of bags	3-side sealing bags	Mid-side sealing bags	Organ Bags
Speed	150pcs/min	160pcs/min	140pcs/min
Overall Dimension	9500×1450×1650mm	Gross Weight	5500kg

Note : Above configuration is for your reference, launch the production according to the actual configuration ordered.

The Merits Of Tianzheng Equipment Goes With Big Advantages For

Tech support: We have experienced senior electrical engineer, professional business representatives and excellenttechnical personnel, Good service and production technology research and development, To be more important, we setup strict quality management system to keep the machine goes with well performance and high quality before delivery.
